3000 kva oil immersed power distribution transformer Installation Standard
According to the provisions of the national standard GB50053-94 “Code for Design of 10kV and Below Substations”, outdoor oil-immersed transformers should be at least 5 meters away from any building. In accordance with the national standard “Code for Fire Protection in Building Design” GB50016 – 2006, outdoor oil-immersed transformers should be at least 6 meters away from civil buildings. Therefore, the safe distance between an open-air transformer and residential houses is at least 6 meters. The national standard also stated in 2008 that it is more appropriate to keep a distance of more than 10 meters between outdoor oil-immersed transformers and residences. Among them, it is required that high-voltage electrical facilities such as oil-immersed transformers should not be “erected” in residential communities with dense populations. This is necessary to ensure the safety of people’s lives and property!

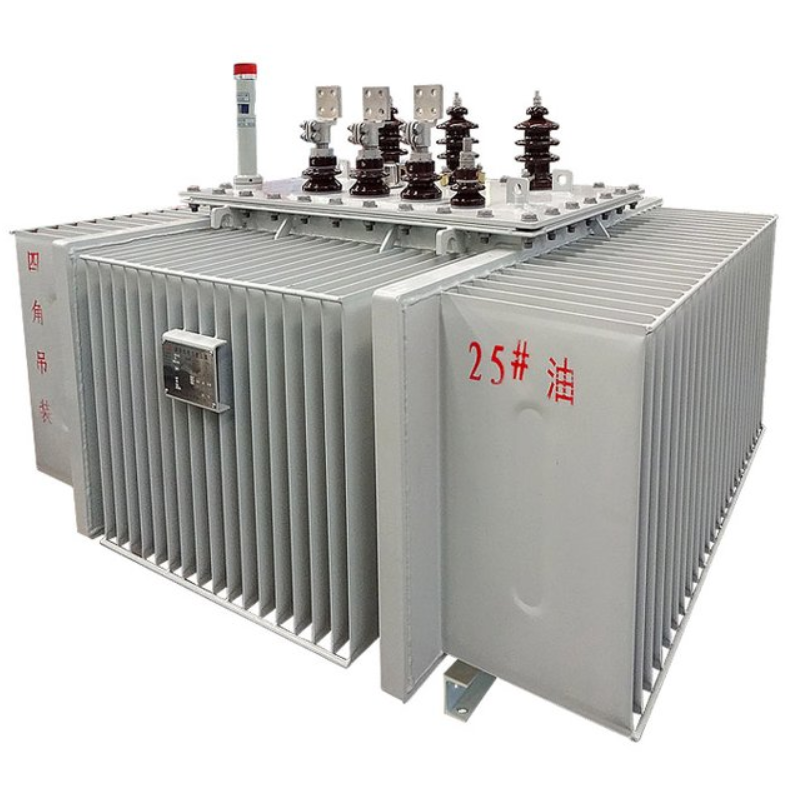

3000 kva oil immersed power distribution transformer Main technical Parameter
| Rated capacity | 3000 KVA |
| Primary voltage | 33KV/35KV/13.2KV/11KV/10KV/6.3KV/6KV(customizable) |
| Tap changer | ±2*2.5/±5 |
| Secondary voltage | 400V/415V/433V/380V(customizable) |
| Vector group | Dyn11/Yzn11/Yyn0 |
| Number of phase | Three phase |
| frequency | 50hz |
| Temperature rise | 65K |
| Short circuit impedance | 4.0% |
| No load loss | Different series(S10,S11,S13,S14),got different loss data |
| Load loss 75ºC | Different series(S10,S11,S13,S14),got different loss data |
| Cooling type | ONAN |
| Oil type | 25#/45# |
| standards | IEC 60076-1 |
