delta star transformer: Electromagnetic Theory, Technical Differences, and Engineering Applications

Introduction

In power system engineering, the delta star connection transformer (Δ–Y transformer) is not merely a conventional wiring choice—it is the result of deep electromagnetic considerations involving magnetic flux balance, zero-sequence current behavior, grounding theory, and harmonic suppression. Compared with other transformer connections (Δ–Δ, Y–Y, Y–Δ), the delta–star configuration demonstrates superior system stability under real-world operating conditions.

This article takes delta star transformer as the core keyword and provides a deeper, formula-based explanation of why this topology dominates modern medium- and low-voltage distribution networks, especially from the perspective of electromagnetic field theory and power system analysis.

Definition of Delta star Connection Transformer

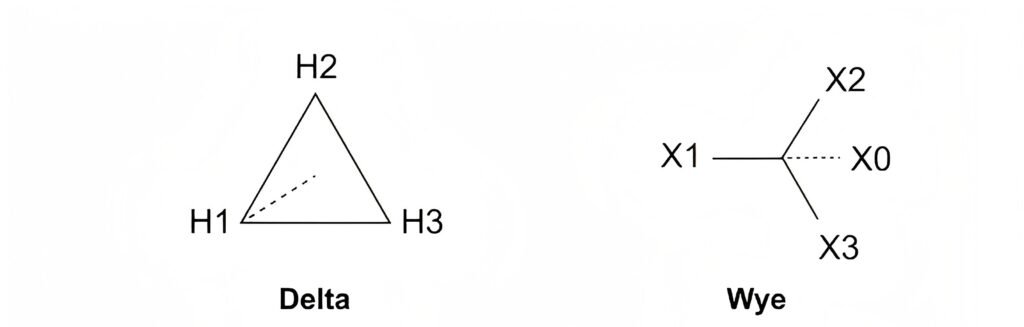

A delta star connection transformer is characterized by:

Primary winding connected in delta (Δ)
Secondary winding connected in star (Y or Yn), usually with a grounded neutral

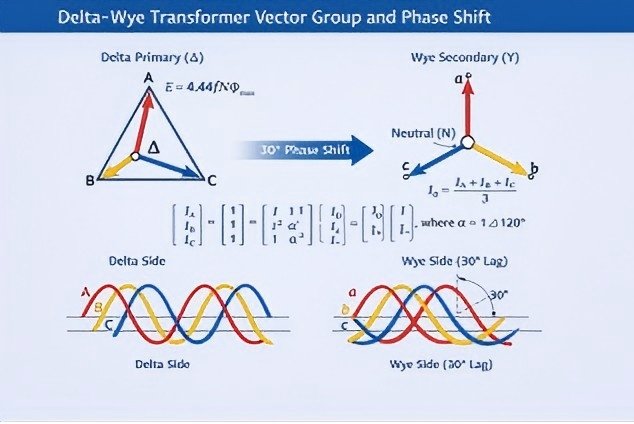

The most common IEC vector groups are Dyn11 and Dyn1, indicating a ±30° phase displacement between primary and secondary line voltages.

Fundamental Electromagnetic Theory

1. Transformer EMF Equation and Flux Relationship

The induced electromotive force (EMF) in a transformer winding is governed by:

E = 4.44 · f · N · Φ_max

Where: – E = RMS induced voltage per phase – f = system frequency (Hz) – N = number of turns – Φ_max = maximum magnetic flux in the core (Wb)

In a delta–star transformer: – Delta side line voltage equals phase voltage – star side line voltage is √3 times the phase voltage

This directly affects turns ratio design:

V_L(Y) / V_L(Δ) = √3 · (N_Y / N_Δ)

2. Magnetic Flux Balance Under Unbalanced Loads

In three-phase transformers, the instantaneous sum of phase fluxes must satisfy:

Φ_A + Φ_B + Φ_C = 0

In delta-connected windings, zero-sequence currents (I₀) are allowed to circulate:

I₀ = (I_A + I_B + I_C) / 3

These circulating currents generate a compensating magnetomotive force (MMF):

MMF₀ = N · I₀

This internal MMF prevents zero-sequence flux from penetrating the core, maintaining flux symmetry and avoiding localized saturation.

Zero-Sequence Current and Grounding Theory

1. Symmetrical Components Perspective

According to symmetrical component theory:

[I_A I_B I_C]ᵀ = [1 1 1; 1 a² a; 1 a a²] · [I₀ I₁ I₂]ᵀ

Where: – I₀ = zero-sequence current – I₁ = positive-sequence current – I₂ = negative-sequence current – a = e^(j120°)

In a delta winding, zero-sequence currents form a closed loop and do not propagate upstream, effectively isolating the primary grid from downstream ground faults.

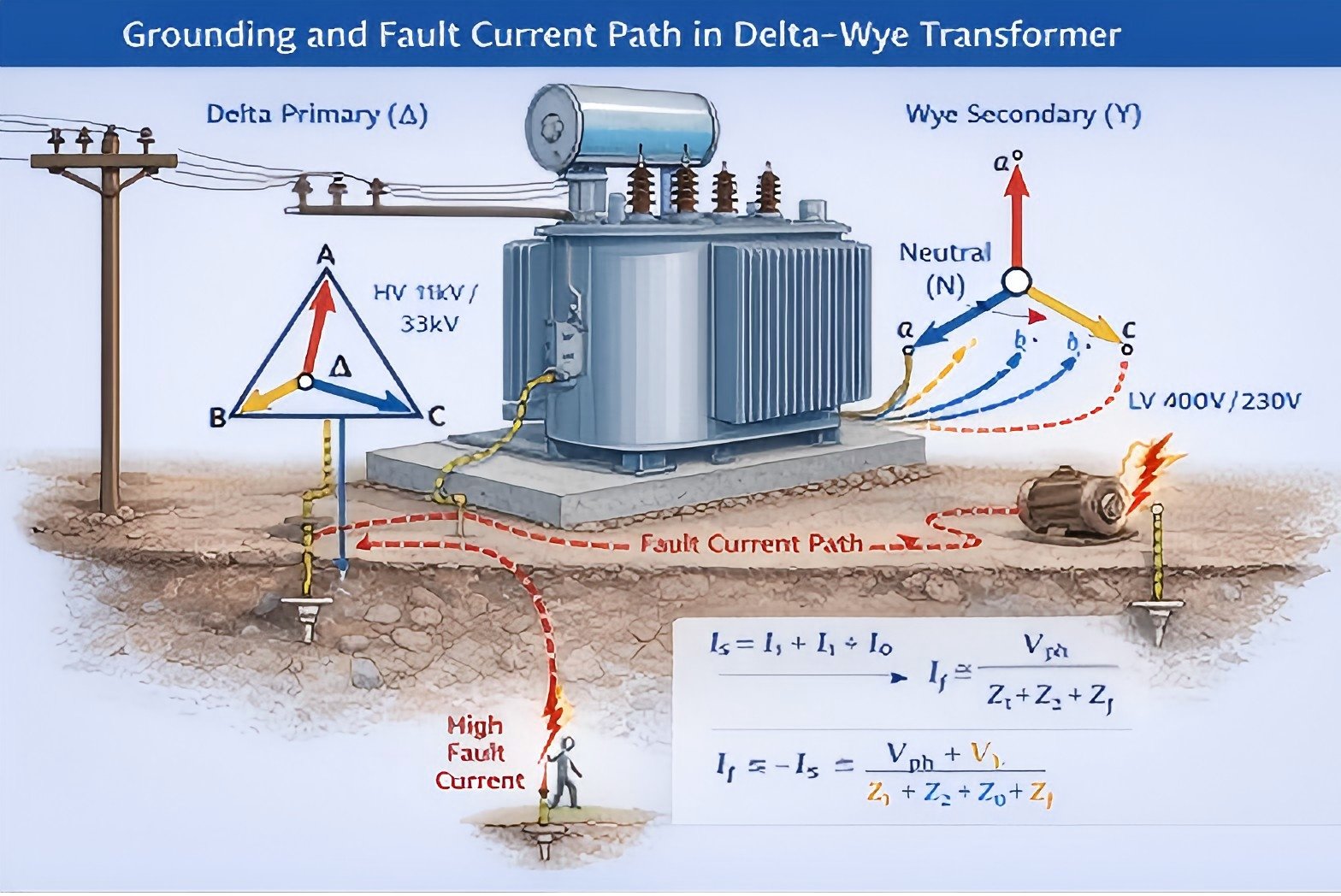

2. Ground Fault Current Path in Delta star Transformer

On the star-connected secondary with grounded neutral:

I_f = V_ph / (Z₁ + Z₂ + Z₀ + Z_f)

Where: – Z₁, Z₂, Z₀ = positive-, negative-, and zero-sequence impedances – Z_f = fault impedance

The presence of a grounded neutral ensures: – Stable fault current magnitude – Reliable relay operation – Accurate earth-fault detection

Harmonic Suppression Mechanism

1. Origin of Triplen Harmonics

Transformer magnetizing current is nonlinear due to the B–H characteristic of core steel:

B = μH + kH³ + …

This non linearity generates odd harmonics, particularly triplen harmonics (3rd, 9th, 15th), which are zero-sequence in nature.

2. Delta Loop Harmonic Circulation

In delta-connected winding:

I_3h(loop) = E_3h / Z_Δ

Triplen harmonic currents circulate inside the delta loop, rather than entering the supply system.

This results in: – Reduced voltage distortion – Lower neutral conductor heating – Improved compliance with IEEE 519 and IEC 61000

Comparison with Other Transformer Connections (Electromagnetic View)

Delta–star vs star–star (Y–Y)

In Y–Y transformers without tertiary delta:

Zero-sequence current path is absent
Zero-sequence flux must return through air and tank walls

Magnetically:

Φ₀ ∝ I₀ / ℜ_air

Where ℜ_air is high magnetic reluctance, causing: – Core saturation – Overheating – Voltage instability

Delta–star vs Delta–Delta (Δ–Δ)

Both configurations provide a delta loop for harmonics, but:

Δ–Δ lacks a neutral point
Single-phase load support is limited
Ground protection schemes are complex

Thus, Δ–Y is more suitable for modern LV distribution.

Delta–star vs star–Delta (Y–Δ)

Y–Δ transformers are often used for step-up generation, where neutral grounding is not required on the secondary side. However:

LV distribution requires phase-to-neutral loads
Protection coordination is weaker

Hence, Y–Δ is rarely used for downstream distribution.

Design Trade-Offs and Engineering Constraints

While the delta–star connection transformer offers strong electromagnetic advantages, designers must consider:

30° phase shift preventing parallel operation with non-matching vector groups
Higher insulation stress on star phase windings
Increased complexity in protection coordination

Parallel operation condition:

Z_pu1 = Z_pu2 and Vector Group₁ = Vector Group₂

Typical Engineering Applications

Utility distribution substations (33/11 kV, 11/0.4 kV)
Industrial facilities with mixed nonlinear loads
Data centers and commercial buildings
Renewable energy LV interconnection points

Conclusion

From the standpoint of electromagnetic field theory, symmetrical components, and harmonic analysis, the delta star connection transformer represents an optimized solution for real-world power systems. Its ability to maintain magnetic flux balance, suppress zero-sequence harmonics, and provide a grounded neutral makes it technically superior to many alternative configurations.

For overseas EPC projects and utility-grade applications, selecting a delta star transformer is not only an industry norm—but a decision firmly grounded in electromagnetic science.

Author: QIANLAI –Transformer Manufacturer & Exporter | Specialized in IEC / IEEE Compliant Distribution and Power Transformers
